Expanded Polystyrene (EPS) Sandwich Panels

PH Insulation’s expanded polystyrene (EPS) sandwich panels are a traditional and cost-effective building material.

The panels have a three-layer structure consisting of an expanded polystyrene insulation core and a choice of metal facings. PH Insulation manufactures both wall and roof panels in a range of sizes.

EPS sandwich panels are designed for projects where keeping the cost per square metre low while maintaining fast installation is a key priority.

Key Product Specifications

Core: expanded polystyrene (EPS)

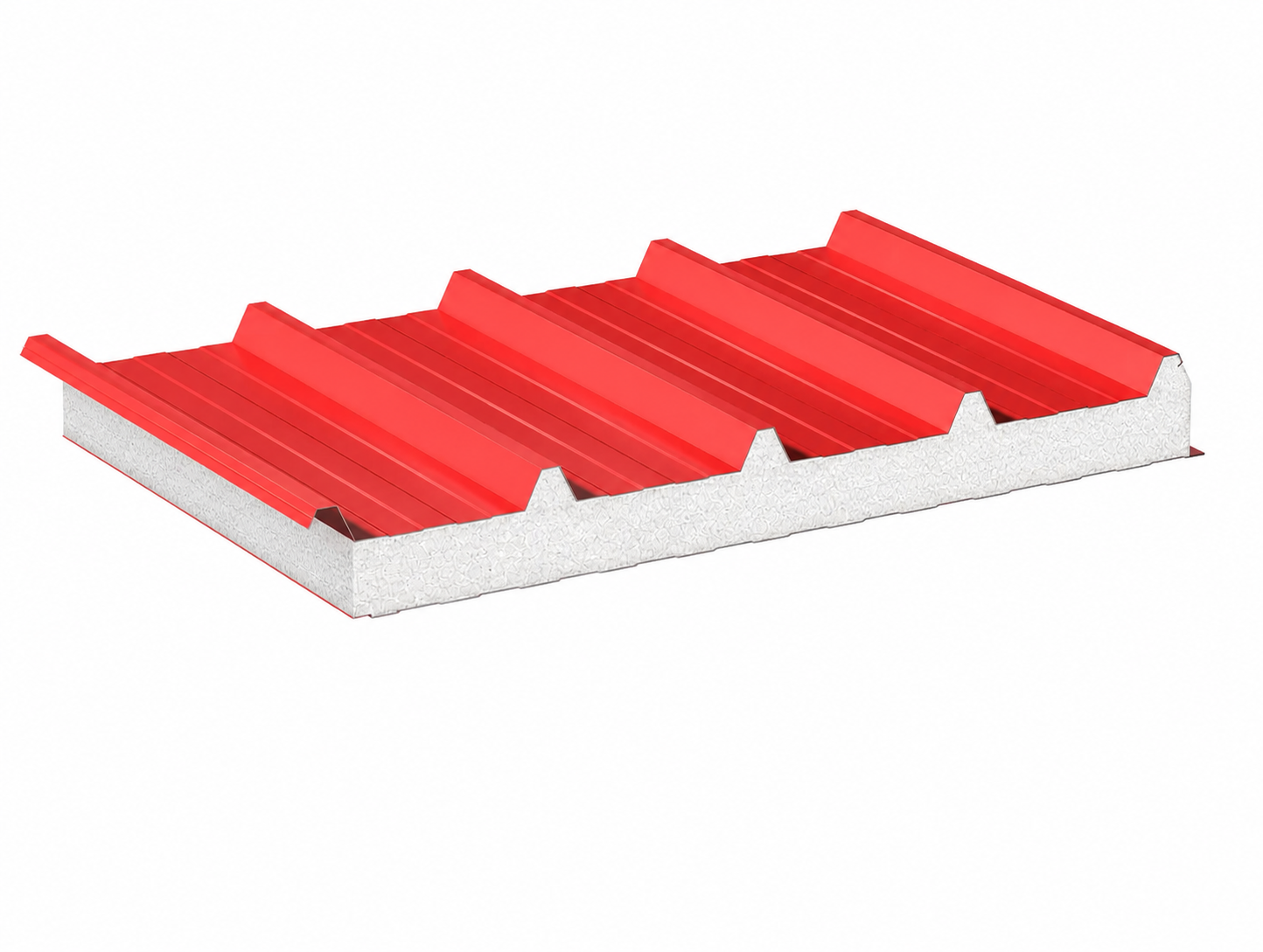

Type: wall and roof panels

Dimensions: length up to 16,000 mm; width 1,000 or 1,190 mm; thickness 50–200 mm

Joint: Z-Lock

Facings: galvanized steel with a polymer coating (polyester) or PVDF, available in RAL colours

Applications

An economical solution for the construction of:

• Car washes
• Auto service centres
• Warehouses
• Hangars
• Retail pavilions
• Utility buildings

Documentation

• Expanded Polystyrene (EPS) Sandwich Panels Leaflet
• Standard RAL Colours Available for PH Insulation Sandwich Panels

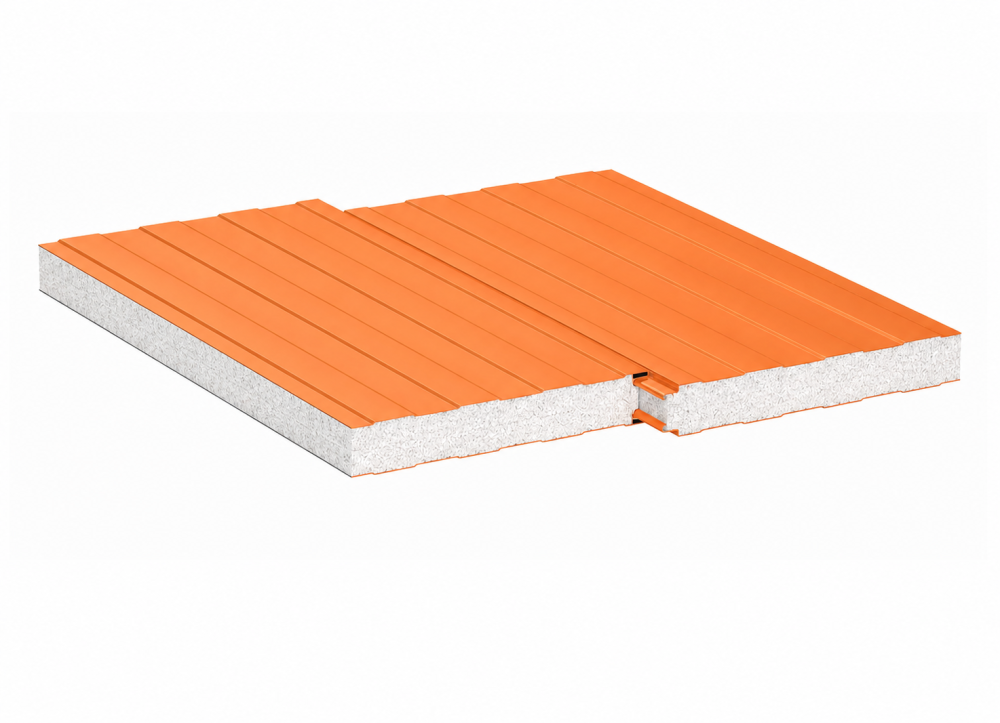

Panel Locking System

Z-Lock — panel thickness: 50–250 mm

Advantages of Sandwich Panel Locks

Z-Lock — provides high strength and tightness.

Secret Fix — provides a clean appearance with no visible sandwich panel fasteners.

Coating Options

• Galvanized steel
• Polyester-coated galvanized steel
• PVDF
• AISI 304 stainless steel
• AISI 430 stainless steel
• Other coatings

Coating Descriptions

Galvanized Steel. Used where sandwich panels adjoin walls and on other concealed surfaces that do not come into contact with cleaning agents.

Polyester-Coated Galvanized Steel. More than 80% of refrigerated warehouses are built using this type of polyester-coated steel. A wide range of RAL colours is available.

PVDF. Steel with a special coating suitable for agricultural buildings. Provides good corrosion resistance and high UV resistance: RUV 4, RC 4.

AISI 304. Stainless steel suitable for meat-processing, slaughtering and meat-cutting facilities, fruit cold stores and pharmaceutical facilities.

AISI 430. Stainless steel for non-food production facilities, including technical areas of food warehouses and non-food warehouses where aggressive chemical cleaning is used.

Other Coatings. PH Insulation can supply sandwich panels with other coatings to meet your project requirements.

Surface Profiling

• Smooth
• Profiled

Advantages

Cost-Effective. The most affordable insulation option in the PH Insulation product range.

Moisture Resistance. EPS is resistant to rot and mould.

Easy Installation. The low weight of the panels reduces loads on the steel structure and foundations, helping reduce foundation and groundworks costs.

Installation in Any Weather. The panels can be installed in different weather conditions without compromising their thermal insulation properties.

Production Lead Times

Your sandwich panels will be ready within 2 weeks of order placement.

Our continuous EPS sandwich panel production lines enable us to accurately plan delivery schedules for projects such as warehouses, industrial buildings and agricultural facilities.

For deliveries within Moscow and the Moscow Region, transportation can be arranged within one day after the order is ready.

For deliveries to other regions, transportation can be arranged within two days after the order is ready.

For international deliveries, transportation can be arranged within 3–4 days after the order is ready.

Metal Coatings

• RAL — polyester-coated galvanized steel. The standard colour is RAL 9003, with other RAL colours available on request. Suitable for general-purpose applications. RUV 2, RC 2
• Zn — galvanized steel without a polyester coating. Suitable for general-purpose applications
• AISI 304 — stainless steel for food-processing facilities
• AISI 430 — stainless steel for non-food production facilities
• PVDF — resistant to dirt, aggressive environments and UV exposure. Recommended for façades of sports, retail, industrial and agricultural buildings. Coating thickness: 25–40 μm; RUV 4, RC 3
• PU — steel with a polyurethane coating
• Plastisol — provides corrosion protection for the metal for up to 15 years
• Food Safe — suitable for direct contact with food. Recommended for cutting and slaughtering areas in food-processing facilities and for high-humidity environments.
