Since the beginning of 2012 Profholod company introduced the new technological process and started the production of sandwich panels having the minimum thickness - 40 mm. The characteristics of the panels are the following:
- thickness — 40 mm
- length — up to 6 m
- weight of 1 m2 с with 0,5 mm metal facing — 9,5 kg
Original pack contains 28 panels.

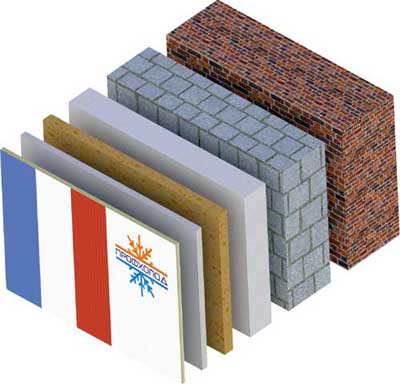

Heat engineering characteristics of a wall made of 40-mm sandwich panels are equivalent to:
- 600-mm thick brick wall.
- 100-mm thick wall of sandwich panels with mineral wool core
Heat insulation material | Heat conduction W/(m*K) | Density kg/m3 | Wall thickness, mm |
ProfHolod’s polyurethane foam PUR | 0,022 | 42 | 40 |
Polystyrene (foam plastic) | 0,035 | 50 | 60 |
Mineral wool | 0,058 | 55 | 100 |
Foam concrete | 0,16 | 400 | 248 |
Expanded clay concrete | 0,3 | 1000 | 500 |
Bricks | 0,37 | 1200 | 600 |
